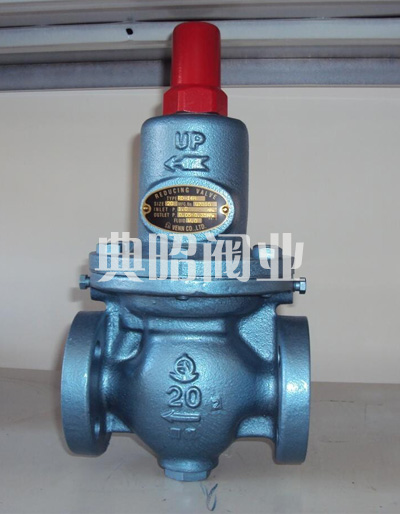

RD-14H型VENN閥天蒸汽減壓閥

手機掃描查看

日本閥天RD-14H減壓閥詳細描述：
RD-14H valve is suitable for: oil, pressure 1.0Mpa following caliber range: 20-150mm Suitable temperature: 5-90 ℃ Body material: cast iron valves day Japan RD-14H is by adjusting the valve, the inlet pressure is reduced to the outlet pressure of a need, and rely on the energy of the medium itself, so that automatically maintain a stable outlet pressure valve.

RD-14H減壓閥適用于：壓力1.0Mpa以下的油品，口徑范圍：20-150mm 適用溫度：5-90℃ 閥體材質為：鑄鐵 日本閥天RD-14H減壓閥是通過調節，將進口壓力減至某一需要的出口壓力，并依靠介質本身的能量，使出口壓力自動保持穩定的閥門。
Operation:
1, closed gate valve before the open gate valve after low pressure downstream manufacturing environment;
2, the adjusting screw counterclockwise rotation to the uppermost position (relative to the minimum outlet pressure), and then close the valve after the valve;
3. Slowly open the gate valve to fully open before;
4. Slowly turn adjustment screw clockwise, the pressure is adjusted to the desired outlet pressure (gauge pressure in the valve prevail); adjusted, the lock
Nut, open the valve gate valve;
5, such as export when adjusting the pressure higher than the set pressure, must start from the first step to re-adjust, which can only tune from low to high pressure.
日本閥天RD-14H減壓閥操作方式：
1、關閉減壓閥前的閘閥，開啟減壓閥后的閘閥，制造下游低壓環境；
2、將調節螺釘按逆時針旋轉至最上位置（相對最低出口壓力），然后關閉減壓閥后閘閥；
3、慢慢開啟減壓閥前的閘閥至全開；
4、順時針慢慢旋轉調節螺釘，將出口壓力調至所需要的壓力（以閥后表壓為準）；調整好后，將鎖緊
螺母鎖緊，打開減壓閥后閘閥；
5、如在調整時出口壓力高于設定壓力，須從第一步開始重新調整，即只能從低壓向高壓調。
